High-Performance Motor with Consistent Power Delivery
The Modi 540 1/10 Sensored Brushless Motor by Cayote is built for serious RC racing performance. Designed for competitive environments, it delivers exceptional precision, consistency, and reliability under intense conditions. With its advanced cooling system, linear power output, and professional-grade internal components, this motor is engineered for high-speed, high-torque applications.
About the Crest Modi Brushless Motor
Precision Power Response
The Modi 540 delivers smooth, linear output that mirrors throttle input without delay or glitch. Whether you're accelerating or decelerating, the motor ensures accuracy and responsiveness. Built-in high-precision Hall sensors and a finely balanced rotor maintain torque stability, giving drivers the sensitivity they need for professional-level control.
Innovative Cooling System

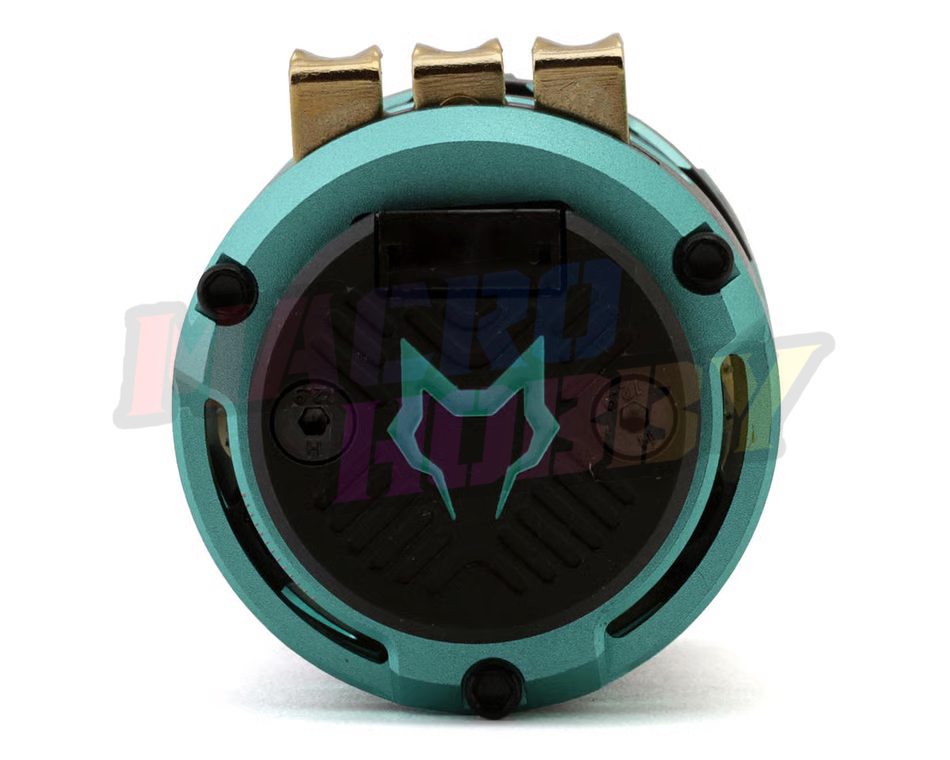

Large ventilation holes on both end caps and a center-exposed stator core provide efficient airflow to critical components. This smart design reduces heat buildup and maintains consistent operating temperatures. Even under high loads and extreme conditions, the cooling system ensures peak performance without thermal fade.
Advanced Tuning & Durability
With a high-temperature resistant magnet rated up to 428°F (220°C), the Modi motor stands up to harsh demands without sacrificing performance. The rebuildable design allows for fast, simple maintenance. When paired with Team Cayote's Crest X and EVO ESC systems, users can access real-time fine-tuning through the Cayote Team app-based “Infinite Adjustment System”* for unbeatable customization.
Features:
Sensored brushless design for smooth and accurate throttle response
High-precision Hall sensors for stable signal detection and control
Precision-balanced rotor for consistent power delivery at all speeds
Large end-cap ventilation holes for superior cooling power
Center-exposed stator for enhanced heat dissipation and airflow
220°C high-temp magnet resists cracking under extreme heat
Instant torque response for explosive acceleration on demand
Linear power delivery ensures control during both acceleration and braking
Rebuildable construction for easy maintenance and long-term performance
App-controlled tuning system allows real-time output adjustments on the track
Includes:

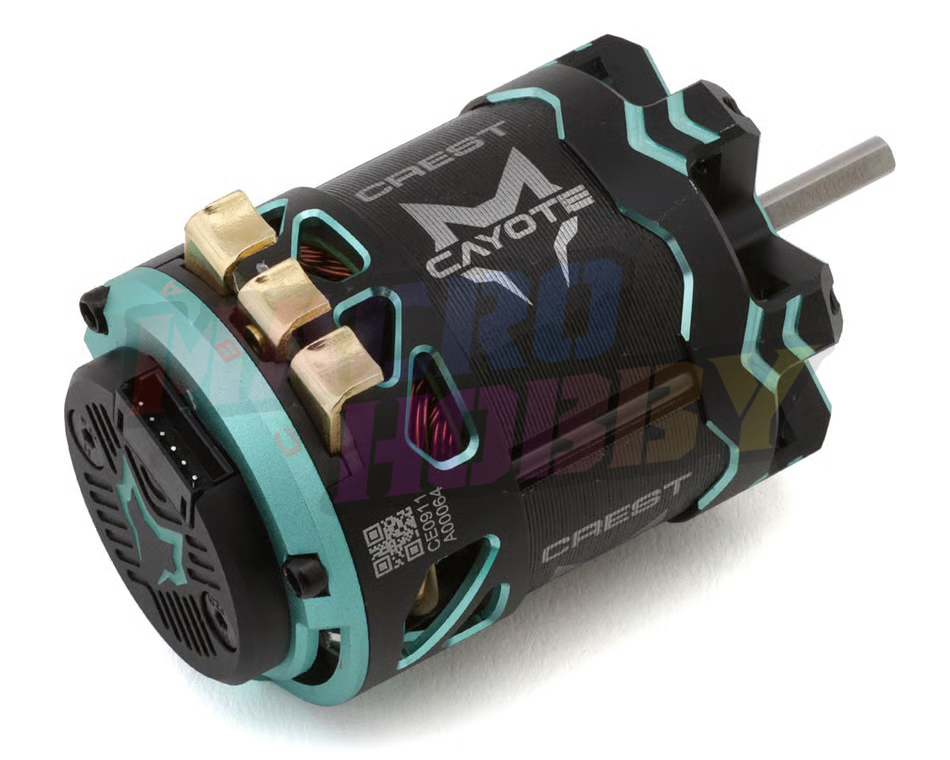

(1) Crest Modi 540 1/10 Sensored Brushless Motor (9.5T)

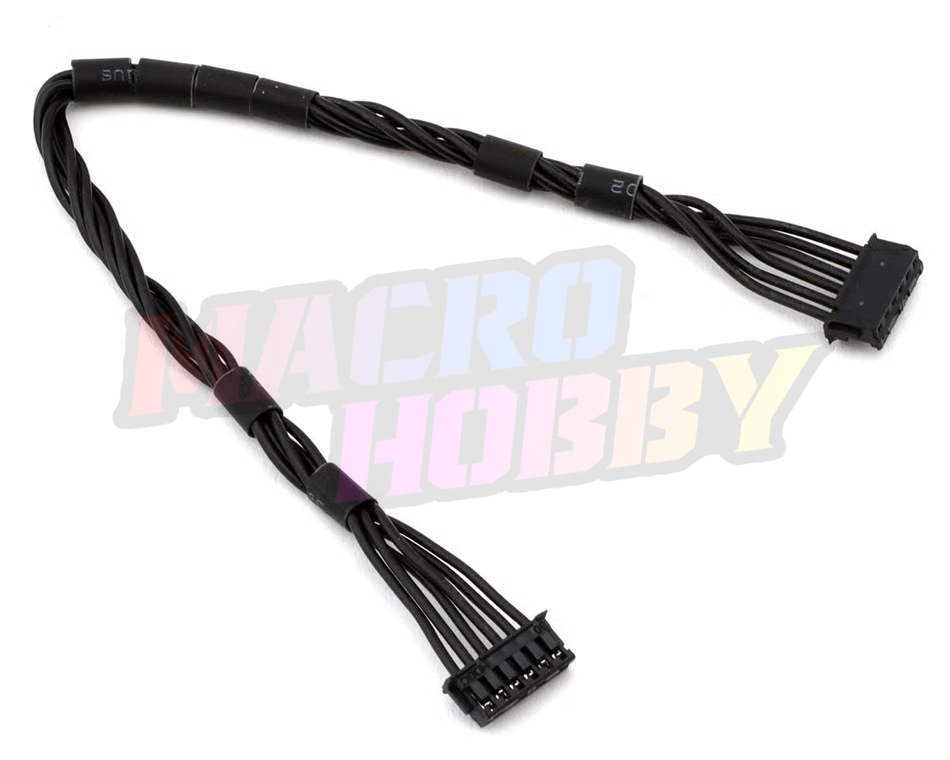

(1) Sensor Cable
Specifications:
Suggested Application 1/10
Size 9.5T (3,700kV)
Type Brushless - Sensored
Voltage 2S LiPo (7.4V)
Adjustable Timing Yes
Poles 2
Connector Solder Tab
Dimensions 2.04x1.41in (51.9x35.8mm)
Shaft Diameter 1/8in (3.175mm)
Weight 5.78oz (164g)
