Description:

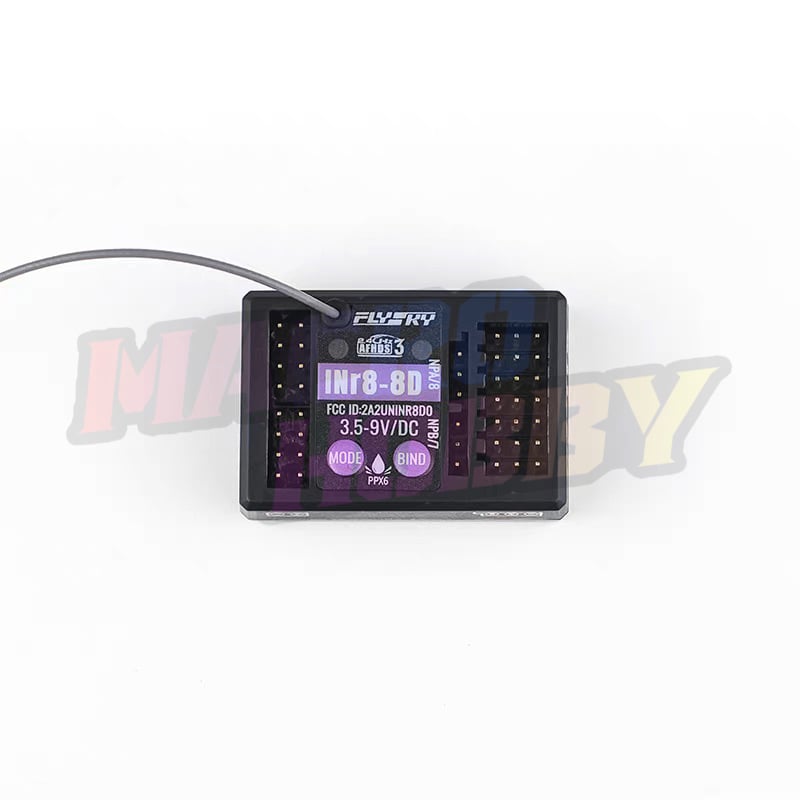

This is Flysky 8-Channel Smart Light Controller Receiver.
Feature:
For: Noble NB4 Series and other AFHDS 3 protocol transmitters (This receiver is currently only compatible with the Noble NB4 series transmitter for modifying lighting functions.)
Material: Plastic
Color: Black
Specification:
Resolution: 4096
Distance: ≥300m (Ground distance without interference)
Antenna: Single Antenna
Operating Voltage: 3.5 ～ 9V /DC
Mode 2/Mode 3 Compatibility: FGr8B and other AFHDS 3 protocol receivers, FS-SR8 and other ANT protocol receivers, other non-Flysky receivers with S.BUS signal connectors.
Compatible RC Model: Car
Number of PWM Channels: 8
Maximum Power: <20dBm (e.i.r.p.) (EU)
RF: 2.4GHz ISM • RF Protocol: AFHDS 3
Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS
Temperature Range: -10℃ ~+60℃
Humidity Range: 20%~95％
Firmware Update: Yes
Dimensions: 41*28.3*13.3mm
Weight: 12.2g

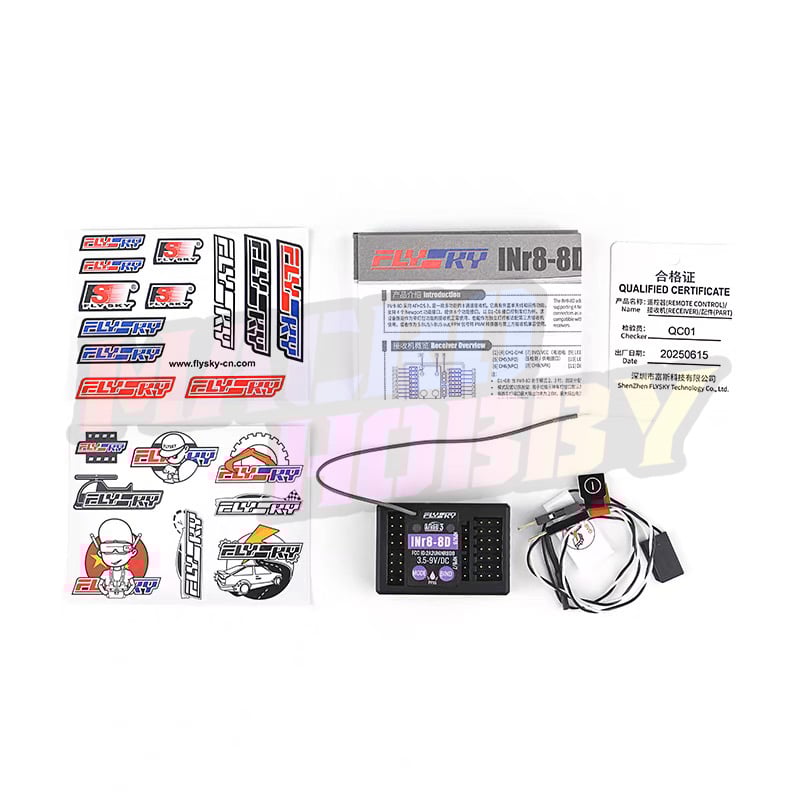

Include:
Flysky 8-Channel Smart Light Controller Receiver (1 pc)
