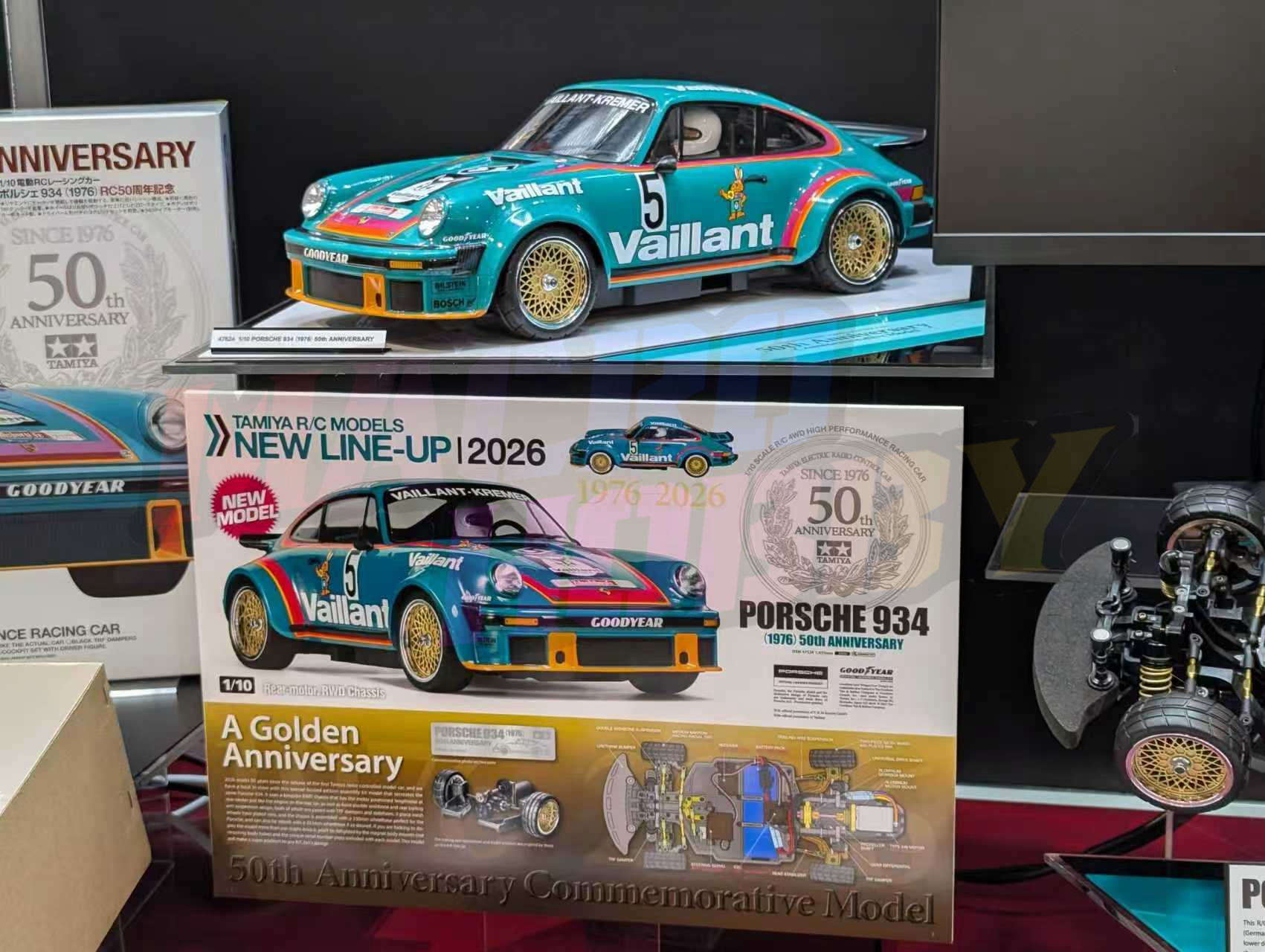

田宮 47524 1/10 RC遙控車 保時捷 934 (1976) 50週年紀念版
To celebrate the 50th anniversary of our first R/C model Porsche 934, we are proud to announce the release of the Porsche 934 with a bespoke chassis featuring the motor positioned lengthwise at rear-center powering the rear wheels just like the actual car. Collectors will be delighted to hear that magnetized body mounts (needing no body holes) are included for those who want to just display the model! The unique numbered plate is also included to add special value to this kit.
《About the Chassis》
【Motor position】

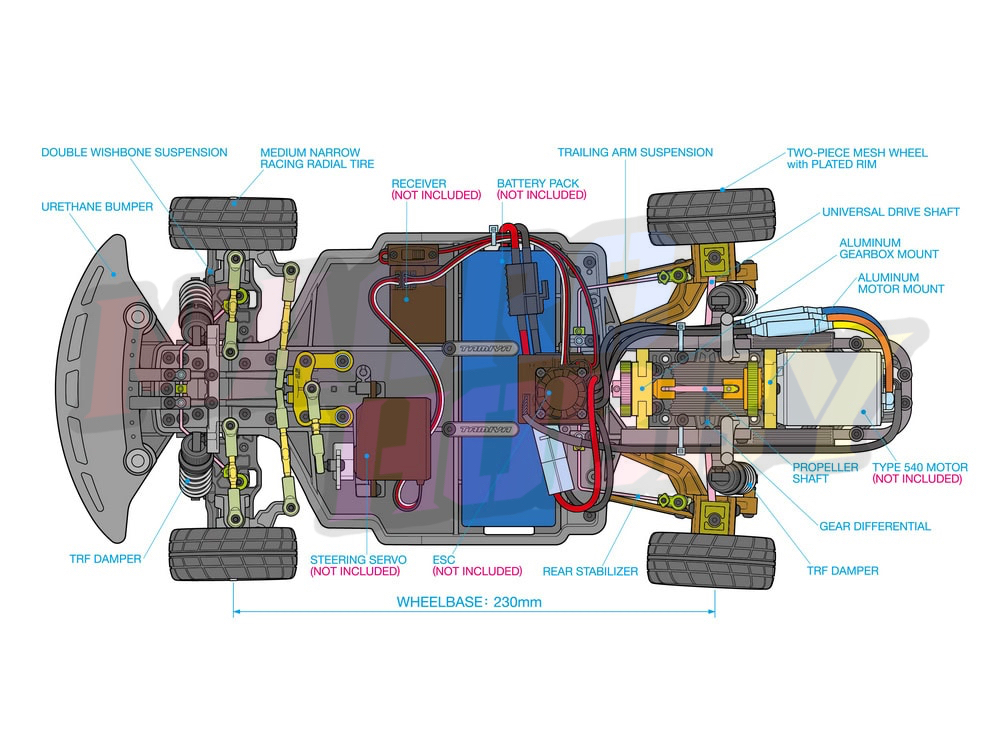

Motor is positioned centrally and lengthwise to make the chassis layout similar to that of the actual car. The power is transmitted as follows: Pinion gear A → Spur gear → Propeller shaft → Pinion gear B → Spur gear → Gear differential. (Spur gears are new 66T design and all gears are 04 module. Gear differential is the one used on the TB-05 chassis.)
Change pinion gears A and B to adjust gear ratio.
Parts around gearbox are aluminum.
【Rear trailing arms】
Just like the actual car, the rear suspension uses trailing arms. Trailing arms are molded in carbon fiber reinforced plastic for superior rigidity.
【Glass fiber reinforced plastic lower deck】

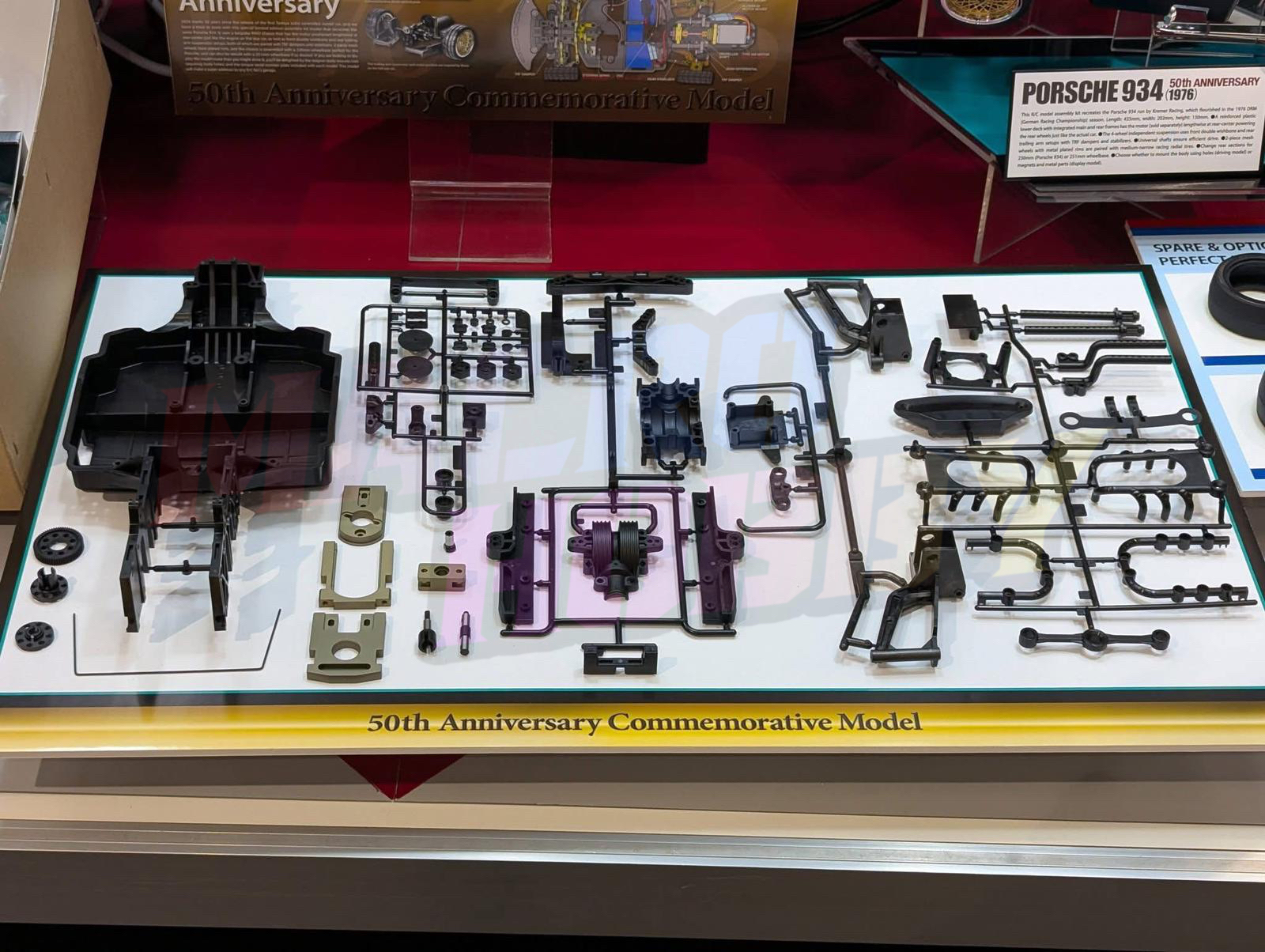

The lower deck with integrated main and rear frames is molded in glass fiber reinforced plastic.
The kit-standard wheelbase is 230mm (trailing arm rear suspension). (The rear layout of the lower deck can be altered to change the wheelbase to 251mm (double wishbone rear suspension). Separately sold body is required for 251mm wheelbase.)
【Design features inspired by the actual car】
Motor guard shape similar to muffler shape
Chassis underside patterns
Stay mount design similar to intercooler design
Separately sold cooling fan is above the motor, like cooling fan duct of the actual car
【Body mounts】
Choose whether to mount the body using holes (driving model) or magnets and metal parts (display model).
【About the Model】

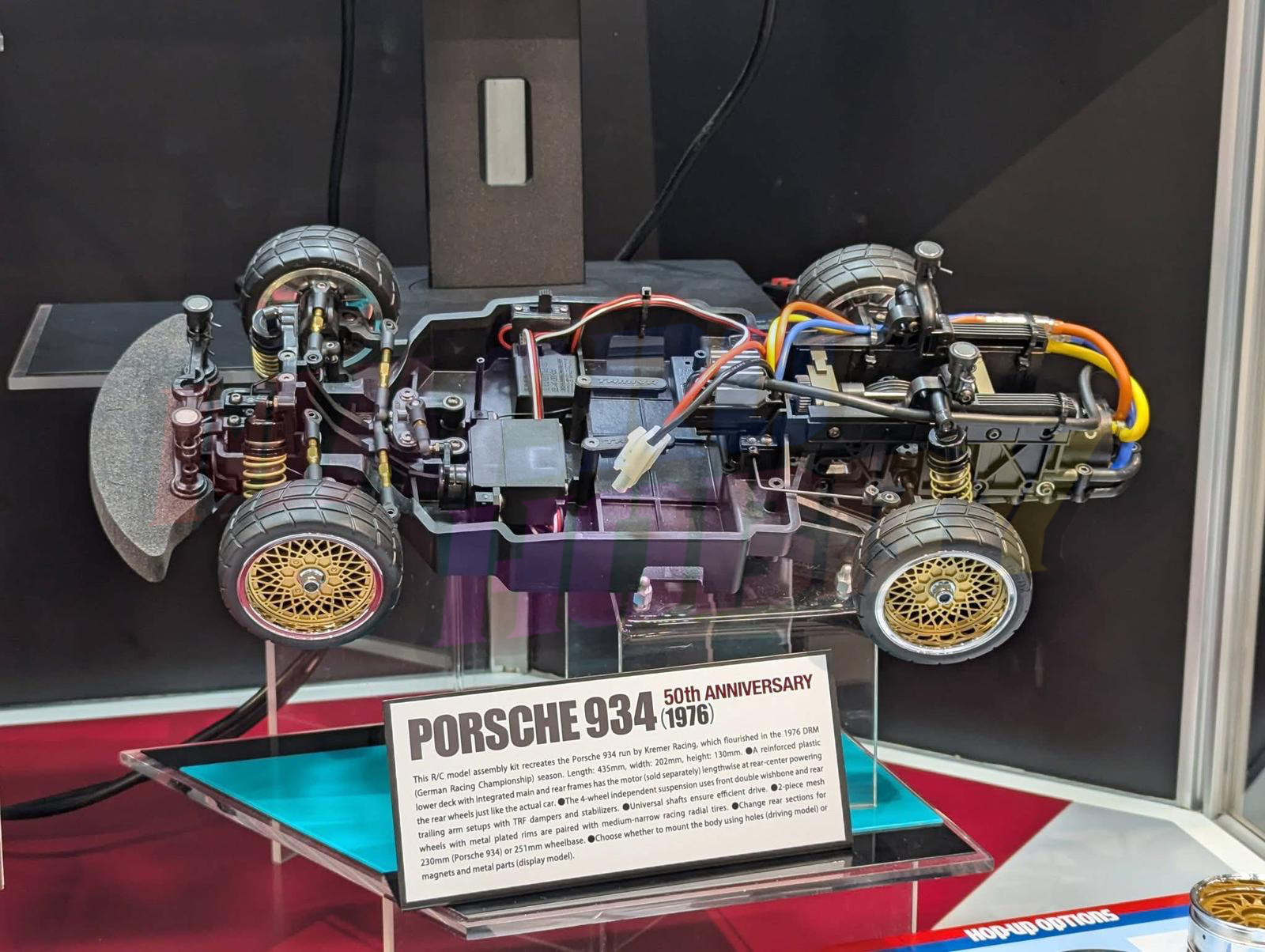

This is a 1/10 scale R/C chassis assembly kit. Length: 435mm, width: 202mm, height: 130mm.

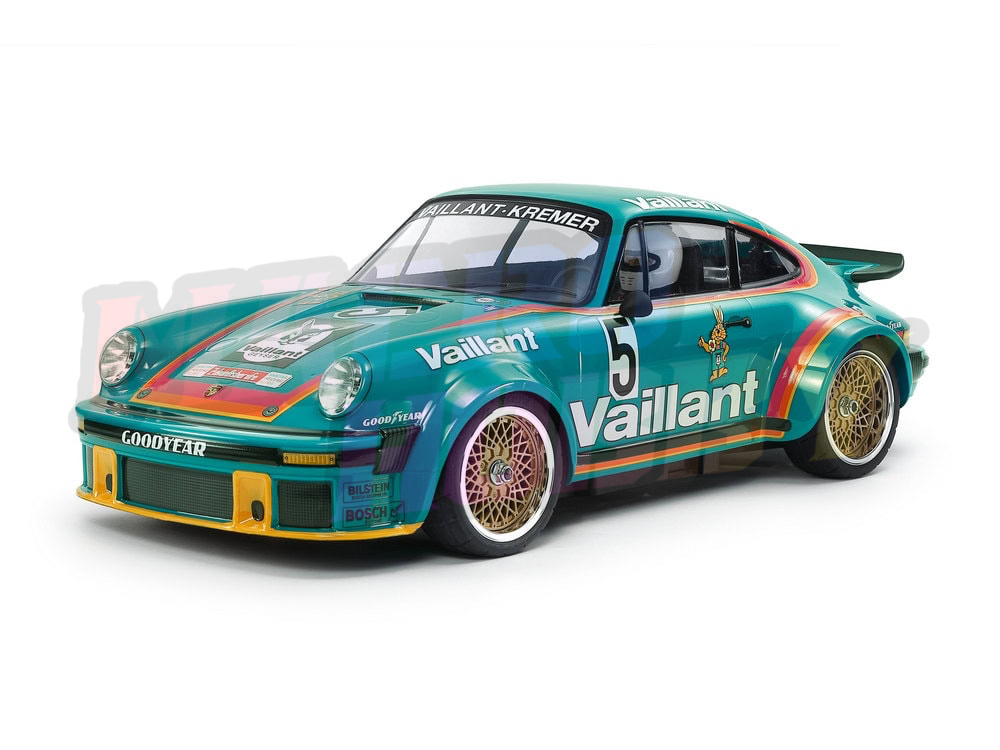

This R/C model assembly kit recreates the Porsche 934 run by Kremer Racing, which flourished in the 1976 DRM (German Racing Championship) season.
The 4-wheel independent suspension uses front double wishbone and rear trailing arm setups with TRF dampers and stabilizers.
The polycarbonate body is the one used for the Porsche 934 30th anniversary model. Paint body with PS-54 Cobalt Green.
Separate plastic parts recreate rear wing, side mirrors and light cases. Separately sold LEDs are attachable. Paint rear wing and side mirrors with TS-102 Cobalt Green.
Gearbox parts and turnbuckle aluminum parts feature dark titanium anodized finish.
Updated stickers are included.

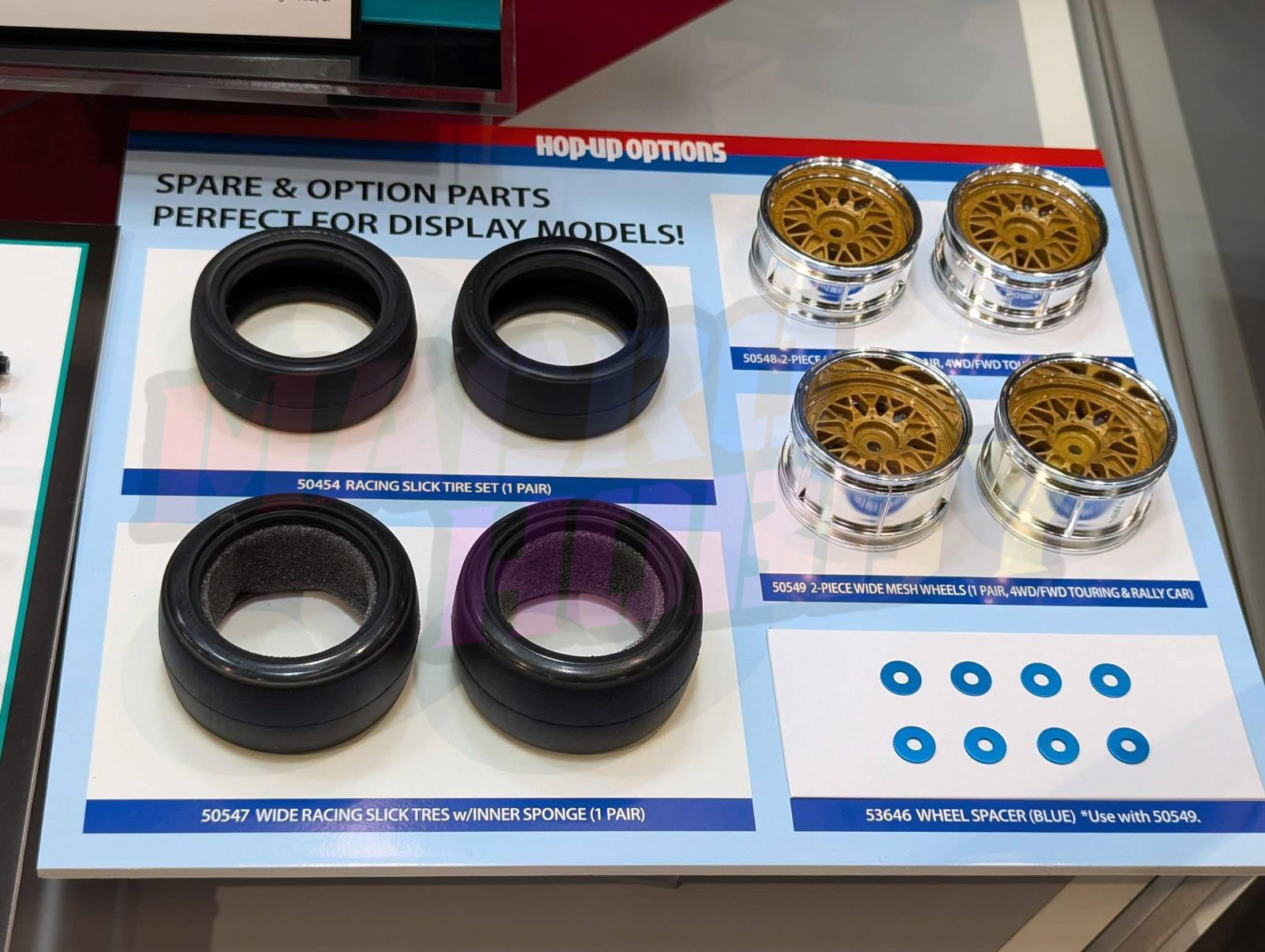

2-piece mesh wheels with metal plated rims are paired with medium-narrow racing radial tires (Item 51023) which offer the great performance. Use wheel spacers (Item 53646) when changing to front narrow and rear wide.
Features high-spec TRF dampers.
Universal shafts ensure efficient drive.
The unique numbered plate is also included to add special value to this kit.
Comes with Item 54298 1/10 Scale Touring Car Cockpit Set (Left-Hand Drive) with updated stickers.
Inspired by the first Porsche 934 model, the kit comes in a white packaging.
<<Compatible Hop-Up Option parts>>
Item 54704 TA07 Aluminum Steering Arm Set
Item 54942 TRF420 Suspension Arm Bushing B (2pcs.)
Item 54943 TRF420 Suspension Arm Bushing A-C (2pcs.)
Item 54880 Aluminum Adjustable Suspension Mount (XB)
Item 54884 Aluminum Adjustable Separate Suspension Mounts (A)
Item 54543 Aluminum Cup Joints for TB-04 Gear Differential Unit (Long & Short)
Item 53505 39mm Swing Shafts For Assembly Universal Shaft Set
