V4 Type TTR:
ob1-RC 4-Channel Wireless Professional LED System V4 Type TTR for 1/14 Tractor Truck #BL-V4TTR
Description:
This is ob1-RC 4-Channel Wireless Professional LED System V4 Type TTR.
(Successor of V3.1M), fits 1/14 RC Tractor Truck
Basic Functions:
Power supply by BEC: 5 – 7.4V Max
V4 upgrade Bluetooth to 4.0 BLE, press [PAIR] once to wirelessly connect V4 Type ST
Max 4 RC channels (Min 2-3 channels
CH1: Steering (Left / Right winker lamp)
CH2: Throttle (2-level brightness brake lamp)
CH3: Manual hazard lamp
CH4: Toggle lamps On/ Off
V4 Smart Toggle (Start Toggle from any position of RC channel, total 5 Toggle steps)
Flash mode (All LED) Toggle by pressing [SET] switch anytime (or use CH3) after power on,
V4 adds 3 more, total 10 flashing styles
LED driving Max 112 pcs, 46 pcs more than V3
Special functions:
Reverse lamp with Reverse beeper (CF plug default setting, which located in Sub unit)
CF plug is also good for installing Bumper lamp
Low Voltage Detection (LVD), Buzzer uses as audible alarm
Fine tune your system by entering Setup Mode, for example :
Auto hazard lamp (when CH3 is not Manual hazard)
Power Options (Low/ Mid/ High / Extra High) for all High power plug, each driving 2-16 LED
V4 adds 3 more HP plug, total 6,
ROF is HP / HV (High voltage) plug, good for LED light bar
If HIGH / EX-HIGH Power option used, external BEC is required
V4 add Winker lamp control option, can disable Winker lamp
Reserved “Toggle & Support leg“ option, select this option if using Tamiya Support leg
V4 add Crawler mode
Features:
15 LED plugs:
FR1-2 (Front lamp)
BR1 (Brake lamp)
L1-2, R1-2 (Left & Right winkers)
AUX1-2 (AUX lamp)
FOG / ROF (Fog / Roof lamp)
REV (Reverse lamp)
V4 adds CL / CR (Chassis lamp)
V4 adds CF (Chassis lamp in Sub unit)
CH2 Auto-calibration on every power on, Plug & Play
Main / Sub Unit design, uses 1 cable to connect each others
External BEC may required if using high power options
Specification:
Input Voltage : 5 - 7.4V (Powered by ESC's BEC)
Battery type for LVD : LiPo 2S (User define: MAX 25.2V)
Support RC System :
All Normal Response RC Systems:PCM/ PPM (FM)/ AM
Some High Response RC Systems, for example :
Futaba : FASST-C1, C2 / S-FHSS / T-FHSS (SR)
Sanwa : NOR / SHR Mode
Dimension (Excludes cables) :
Main Unit : 45mm (L), 41.3mm (W), 11.7mm (H)
Sub Unit : 24.5mm (L), 18.5mm (W), 12mm (H)
Weight : MAIN / SUB Unit : 14g / 10g
Specification (Wireless):
Bluetooth Protocol: Bluetooth Specification V4.0 BLE
Frequency : 2.4GHz ISM band
Modulation : GFSK
TX Power : -4 - >4dBm, Class 2
Sensitivity : -93dBm
Includes:
Main Unit x 1
Sub Unit x 1
Main Cable x 1
Set switch cable x 1
Extend LED cable x 1
2S battery cable x 1

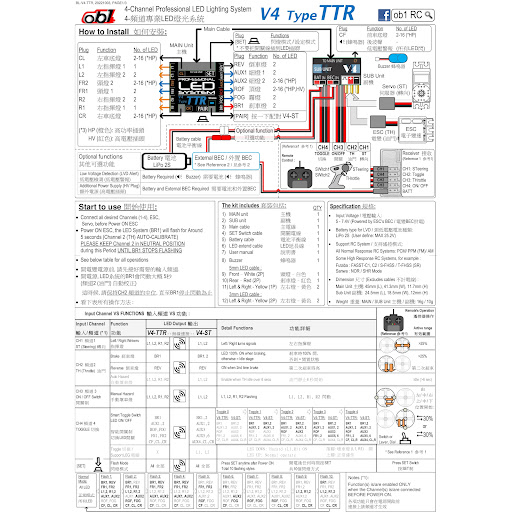

User Manual x 1 (English / Traditional Chinese)
Buzzer x 1
Front LED cable x 1 (5mm high brightness WHITE LED 2P)
Brake LED cable x 1 (5mm high brightness RED LED 2P)
Left / Right LED cable x 2 (3mm YELLOW LED 2P)
Left / Right LED cable x 2 (5mm YELLOW LED 1P)
